CLAD Products
Bi-metallic pipes and piping products that balance corrosion resistance with cost efficiency for the most aggressive environments.
Engineered for Corrosive Environments
The oil and gas industry requires specialized solutions to handle aggressive, corrosive, and abrasive media during transportation between wells and processing stations. PM Piping addresses this challenge with bi-metallic pipes that balance corrosion resistance with cost efficiency.

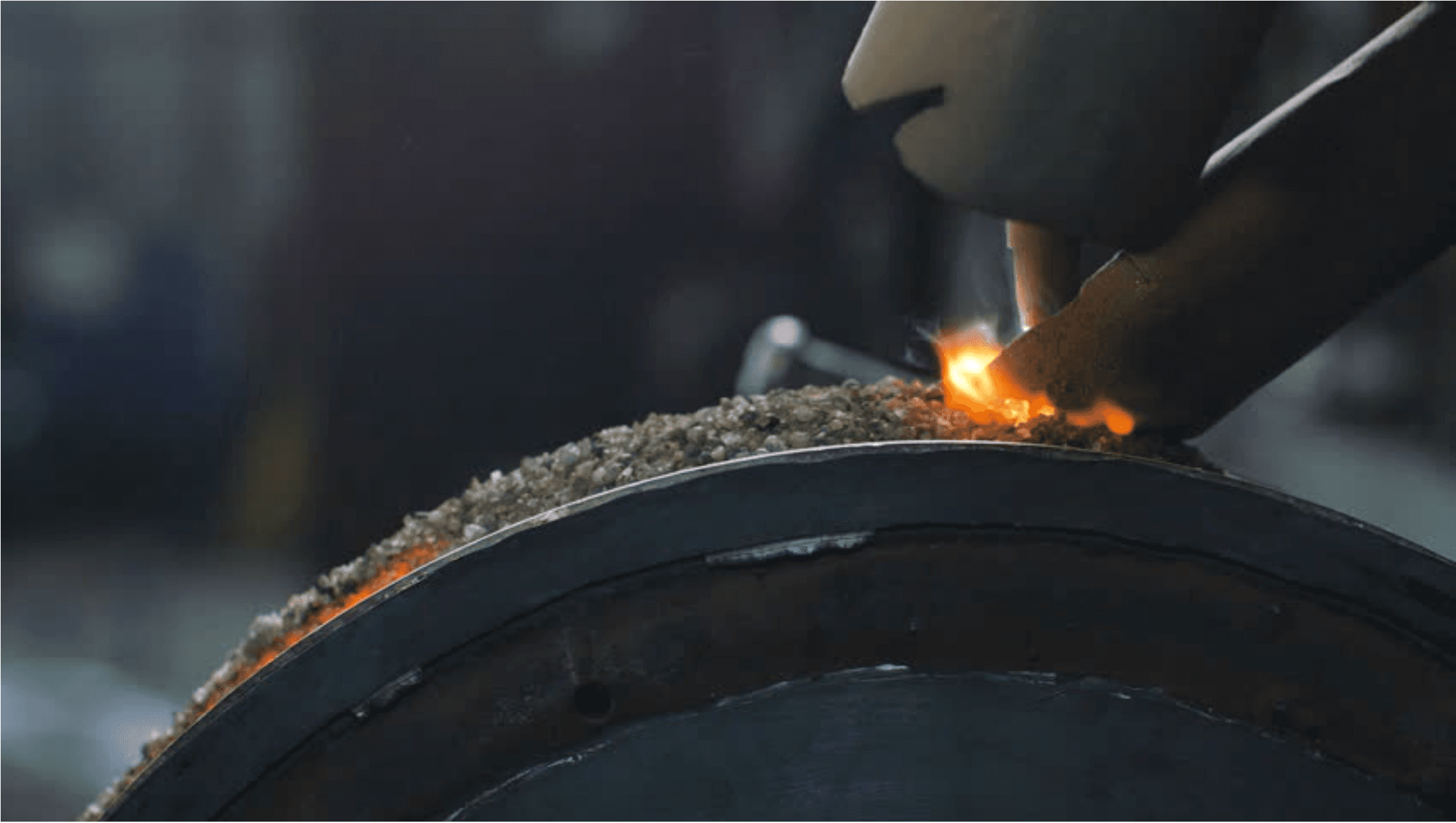

These products feature a thicker pressure-containing carbon steel or low alloy steel base layer combined with a thinner corrosion-resistant alloy protective layer to prevent erosion and abrasion. Special 3-layer claddings are available upon request.
Pipe Manufacturing Methods
Seamless and longitudinally welded CLAD pipes are produced using four distinct bonding techniques.
- Metallurgically roll-bonded plates
- Metallurgically explosion-bonded plates
- CS/AS pipes with internal weld-overlay bonding
- CS/AS pipes with internal mechanical bonding
Beyond Pipes
Our CLAD product range extends to bends, fittings, flanges, valves, plates, and fabricated components.
Induction Bends
Starting at 3D radii, manufactured from metallurgically clad pipes
Fittings & Flanges
Using weld-overlay cladding techniques
Valves
Internal weld-overlay cladding for corrosion protection
Plates
Roll-bonded or explosion-bonded cladding
Dished Ends / Heads / Cones
Manufactured from clad plate material
Pressure Vessels
Complete assemblies from clad plate material
Size Ranges & Capabilities
Pipes & Bends
- 6" to 36" diameters
- 10mm+ base thickness
- 3mm+ CRA layer
Fittings, Flanges & Valves
- 4" to 60" diameters
Plates
- 10-120mm base thickness
- 3mm+ clad layer
- Up to 3.8m width, 12.4m length
- 20-ton maximum weight
Dished Ends / Heads / Cones
- Up to 120mm thickness
- 10-metre diameter capacity
Need CLAD Solutions for Your Project?
Our specialists can advise on the optimal bi-metallic construction method for your specific corrosive environment.
